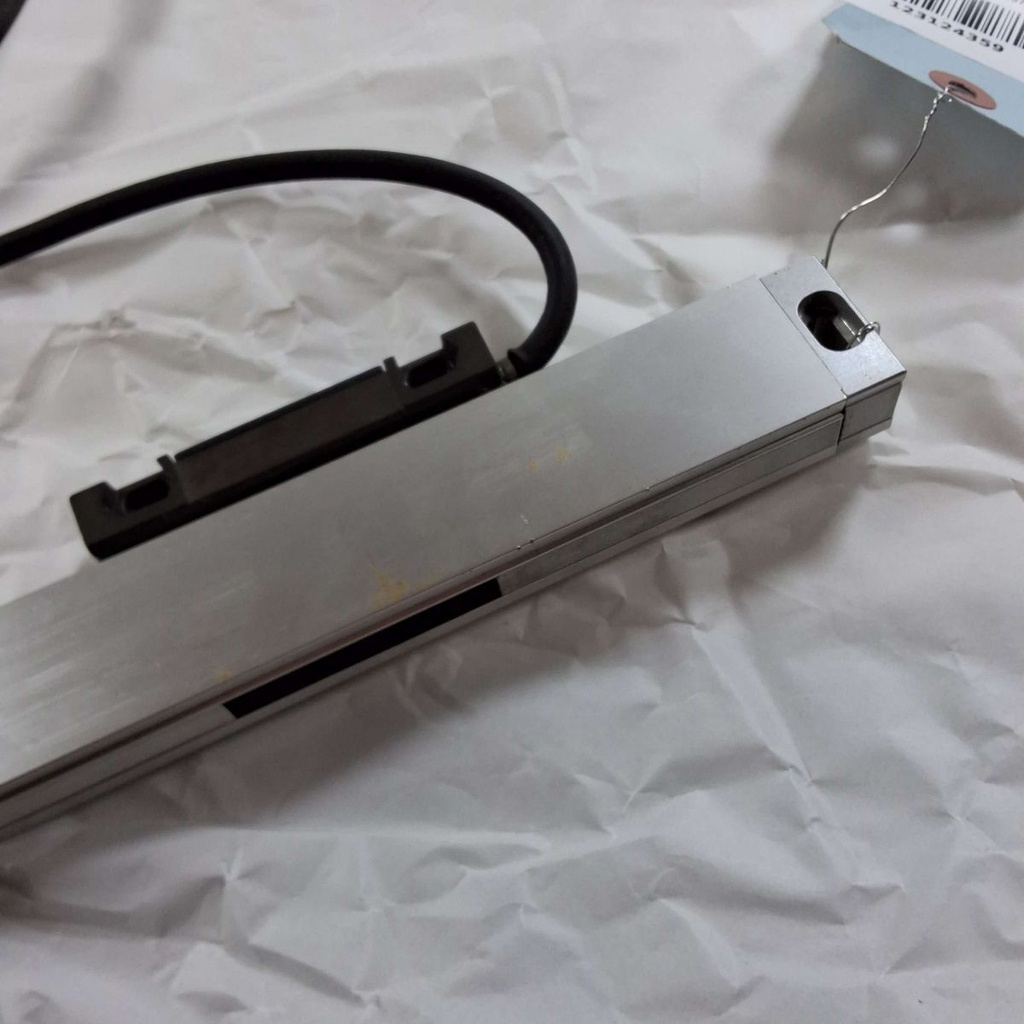

  2. LS 403 270MM HEIDENHAIN SCALE HEIDENHAIN LS 403 series linear encoder with 270mm CHARMILLES - USED-TESTED

LS 403 270MM HEIDENHAIN SCALE HEIDENHAIN LS 403 series linear encoder with 270mm CHARMILLES - USED-TESTED

https://jpurdun89-mxp-edm1.odoo.com/web/image/product.template/2820/image_1920?unique=ab87d82

CHARMILLES - overnight available, 30-day warranty return

**⚠️ WARRANTY / RETURNS:** Fully tested and confirmed working. 30-day return guarantee if not as described.

**APP URL:** https://task-deployer.emergent.host/api/products/eab1f90d-eb42-4e24-884e-bbf2cb5cffed/info?BC=123124653&PN=LS+403+270MM+HEIDENHAIN+SCALE&INT=LS403270MMHEIDENHAINSCALE-USED-TESTED
**PART NUMBER:** LS 403 270MM HEIDENHAIN SCALE
**INTERNAL P/N:** LS403270MMHEIDENHAINSCALE-USED-TESTED
**CONDITION:** USED-TESTED

**DESCRIPTION:**
LS 403 270MM HEIDENHAIN SCALE HEIDENHAIN LS 403 270mm Linear ScaleHEIDENHAIN LS 403 series linear encoder with 270mm measuring length. Incremental optical linear scale for position measurement in machine tools and precision equipment.COMPATIBLE PART NUMBERS: LS 403 270MM HEIDENHAIN SCALECOMPATIBLE MACHINES: CNC milling machines, CNC lathes, Grinding machines, Coordinate measuring machines (CMM), Precision measuring equipment, EDM machinesCATEGORY: Linear Encoder / Position MeasurementLABEL TEXT (scanned photo)
Manual entry: LS 403 270MM HEIDENHAIN SCALEHEIDENHAIN LS 403 series linear encoder with 270mm measuring length. Incremental optical linear scale for position measurement in machine tools and precision equipment.AI DESCRIPTION
The HEIDENHAIN LS 403 270mm Linear Scale is a high-precision incremental optical linear encoder designed to accurately measure position along a specified length of 270 mm. With a resolution of 0.1 µm and exhibiting TTL and 1Vpp sinusoidal output signals, this encoder caters to sophisticated control systems requiring reliable feedback in precision machinery applications. Operating efficiently at a nom. input voltage of 5 V DC, it boasts a current draw of approximately 100 mA. Its robust design with IP53 protection makes it suitable for various CNC machines, milling machines, EDM setups, and precision measuring equipment even in challenging industrial environments.Compatible with machines like CNC milling machines, CNC lathes, EDM machines, and Coordinate Measuring Machines (CMM), the HEIDENHAIN LS 403 is integral for precision tasks. This encoder effectively supersedes other series with similar measuring lengths and integrates seamlessly into existing setups without necessitating extensive retrofitting.In practice, users should look out for common alarm codes indicating linear encoding failures or signal discrepancies, frequently diagnosed by interrupted output signals or erroneous position readings. Routine inspection for physical damage or contamination may preempt such failures.Key Features:
• 5 V DC typ. input
• 5 V TTL/1Vpp output
• 270 mm measuring length
• 0.1 µm resolution
• IP53 ratingTypically used in: CNC milling machines, CNC lathes, EDM machines, CMMs

**EBAY NAME:** LS 403 270MM HEIDENHAIN SCALE HEIDENHAIN LS 403 270mm Linear Scale - TESTED WORKING
**MACHINE MODEL:** CNC milling machines, CNC lathes, Grinding machines, Coordinate measuring machines (CMM), Precision measuring equipment, EDM machines
**COMPATIBLE MACHINES:** CNC milling machines, CNC lathes, Grinding machines, Coordinate measuring machines (CMM), Precision measuring equipment, EDM machines

**NOTES:**
Works great, pulled running machine before decommissioned

**CATEGORY:** All / ELECTRONICS / CHARMILLES

$ 400.00 400.0 USD $ 400.00

$ 400.00

Not Available For Sale

    This combination does not exist.
