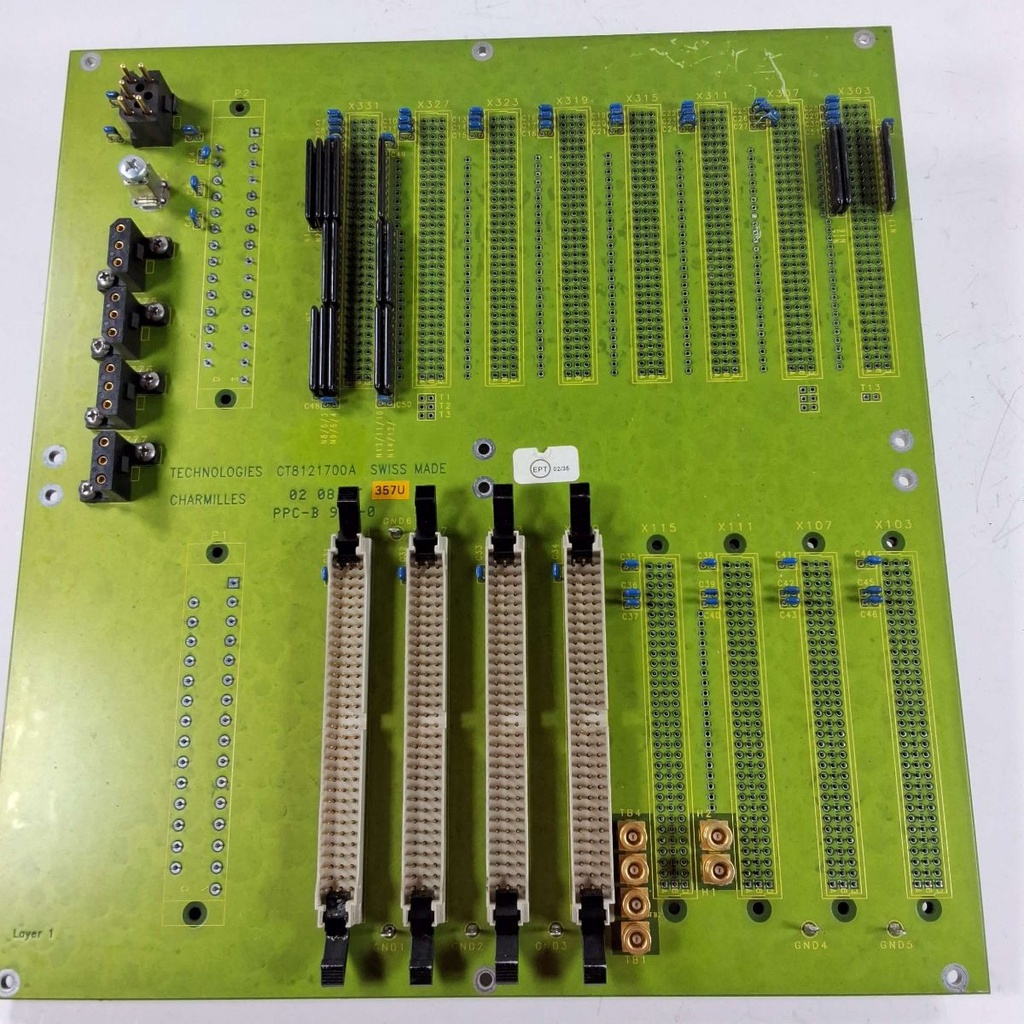

CT8121700A Circuit Board CHARMILLES - USED-UNTESTED

CHARMILLES - overnight available, 30-day warranty return

**⚠️ WARRANTY / RETURNS:** Sold AS-IS, untested. 30-day DOA (dead on arrival) guarantee only — no returns for buyer's remorse or unspecified failures.

**APP URL:** https://task-deployer.emergent.host/api/products/da4fed46-58e6-4b98-b1ab-da3d9629202d/info?BC=123124734&PN=CT8121700A&INT=CT8121700A-USED-UNTESTED
**PART NUMBER:** CT8121700A
**INTERNAL P/N:** CT8121700A-USED-UNTESTED
**CONDITION:** USED-UNTESTED

**DESCRIPTION:**

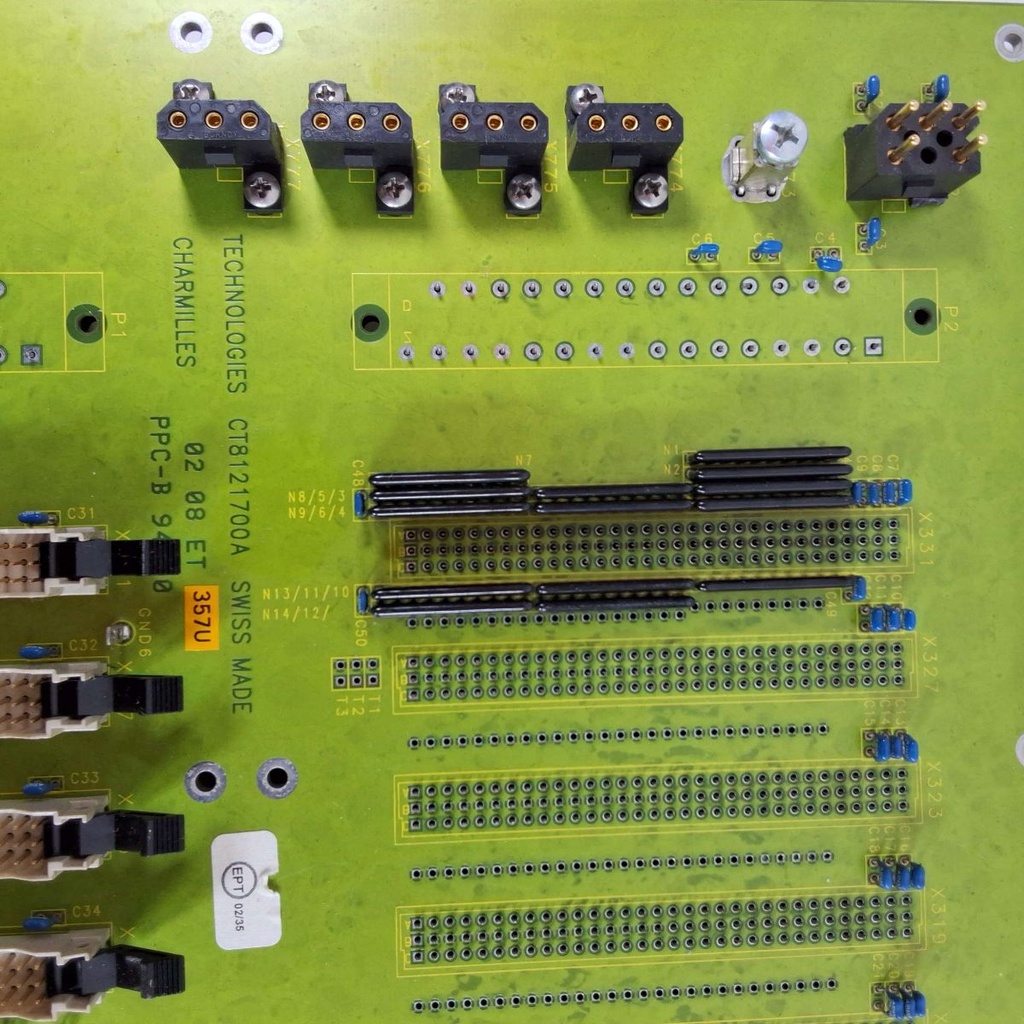

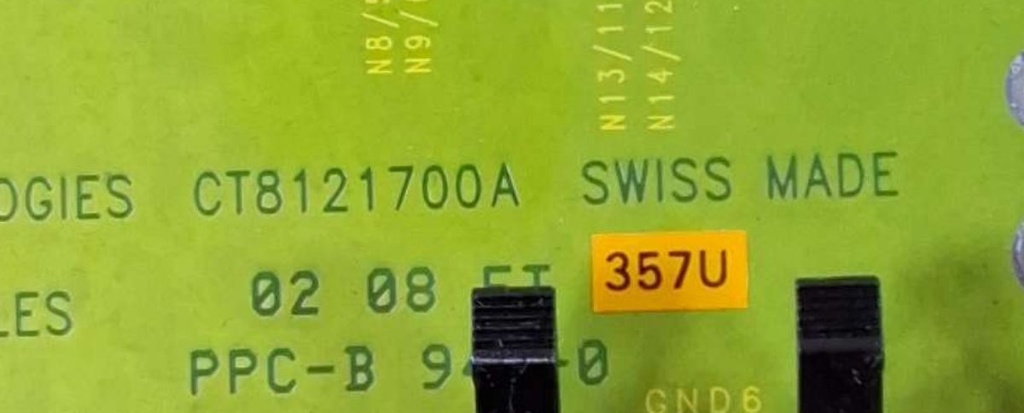

Industrial Circuit Board CT8121700ALABEL TEXT (scanned photo)
CT8121700A
SWISS MADE
02 08 FT
PPC-B 9
357U
N8/N7
N9/N10
N13/N11
N14/N12
GND6AI DESCRIPTION
The PCB CCU PILOT 186 FO40/FOX000/FI500 is a critical circuit board for Charmilles EDM systems, designed to manage control unit functions. It features voltage rails of ±15 V and +5 V, supporting various control protocols. Known for seamless integration, it offers high reliability in controlling electronic discharge operations. This board is compatible with numerous machine models, including FI2020, FI290, and FO4000, making it versatile for different EDM configurations.Key Features:
• Voltage rails: ±15 V, +5 V
• Dimensions: typ. 200 x 150 mm
• Compatible with FI2020 and FO4000
• Control unit functionality
• High reliabilityTypically used in: Charmilles FI2020, FI290, FO4000 EDM systems.

**EBAY NAME:** CT8121700A Industrial Circuit Board

**NOTES:**
Works great, pulled running machine before decommissioned

**CATEGORY:** All / ELECTRONICS / CHARMILLES
