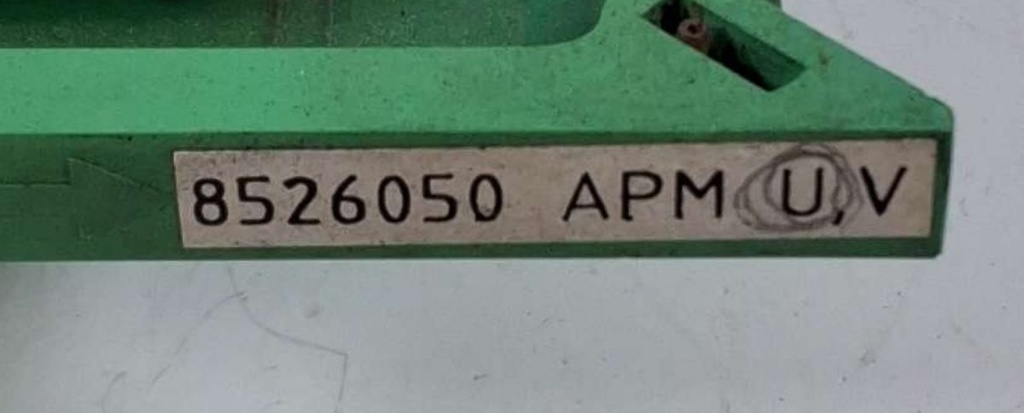

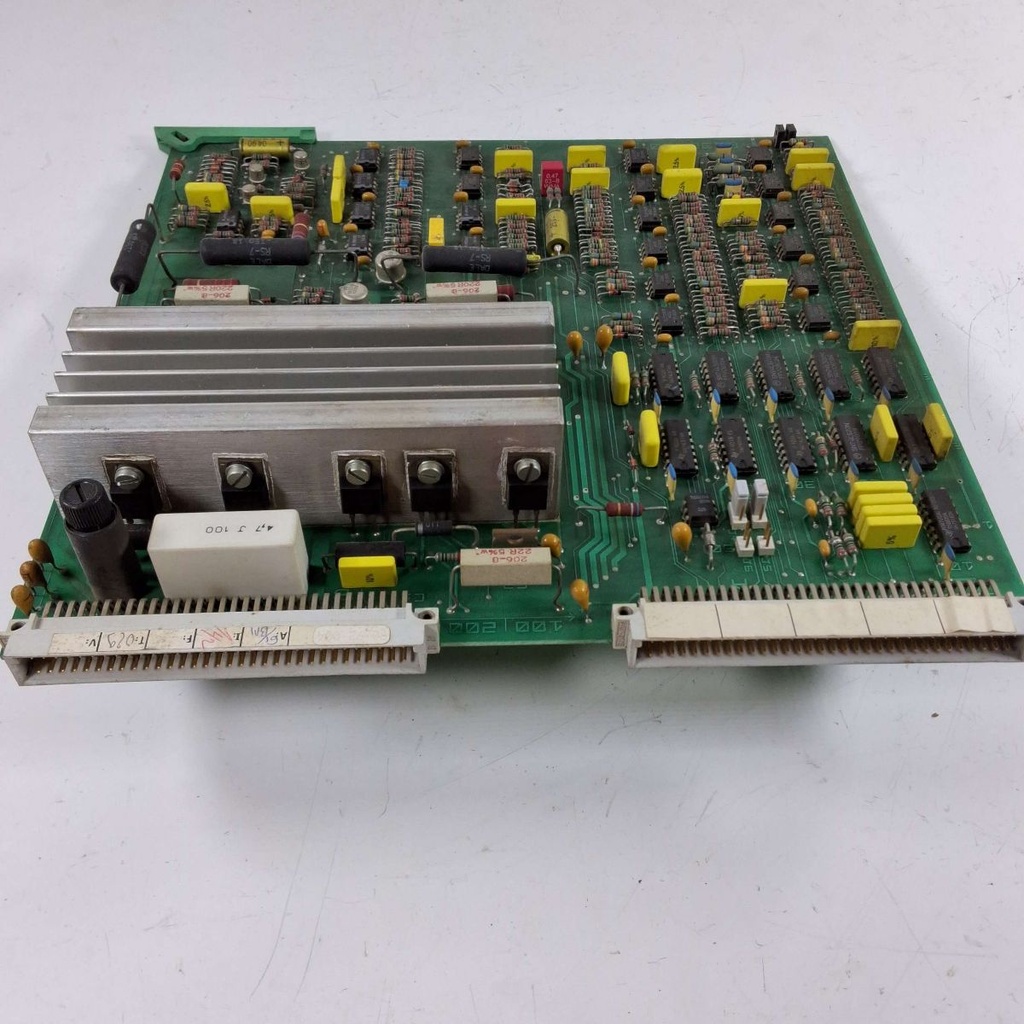

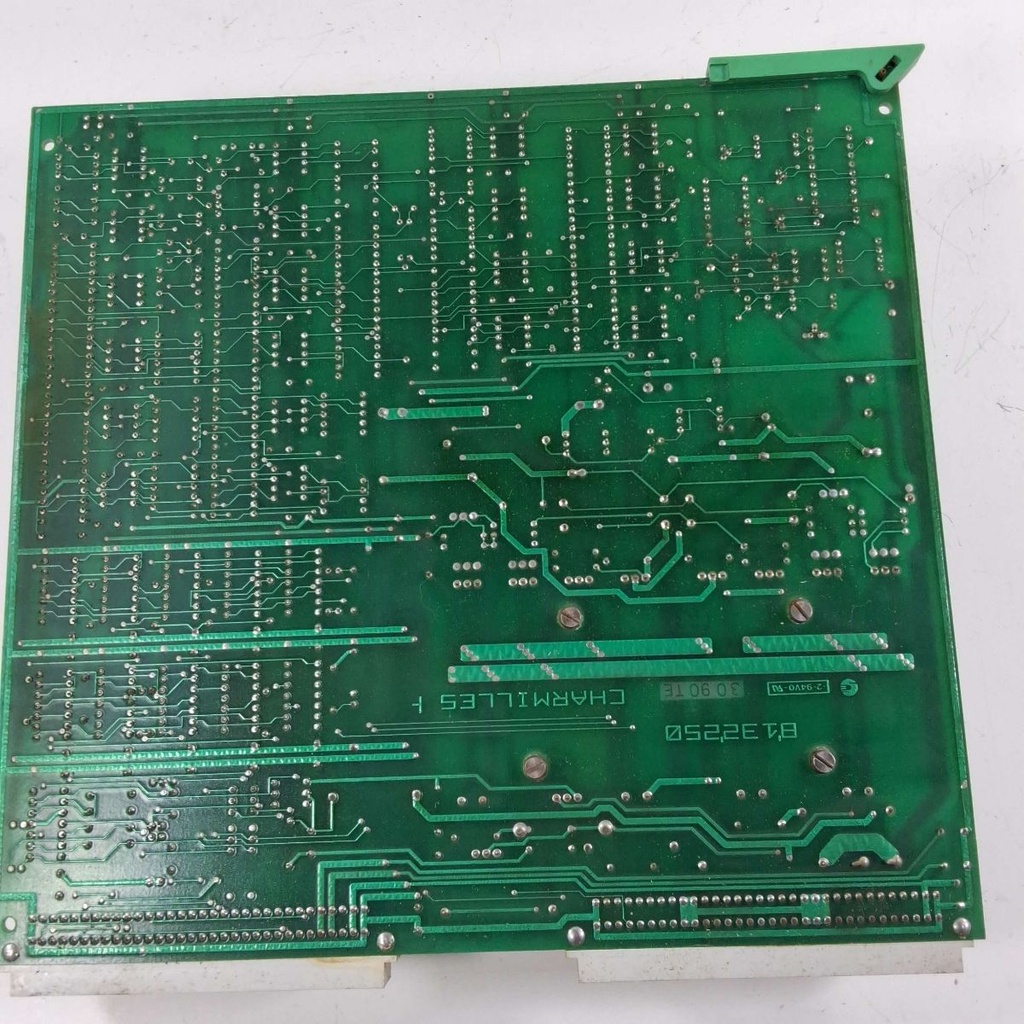

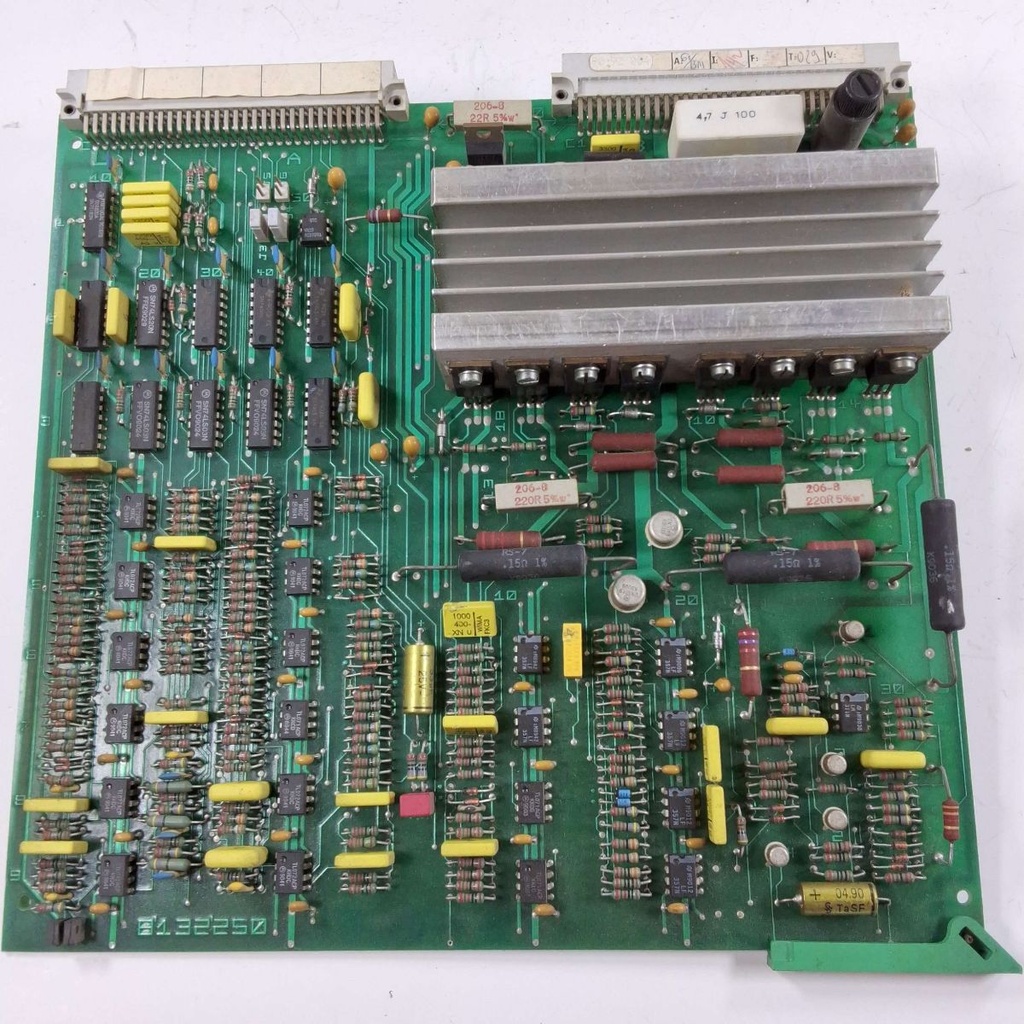

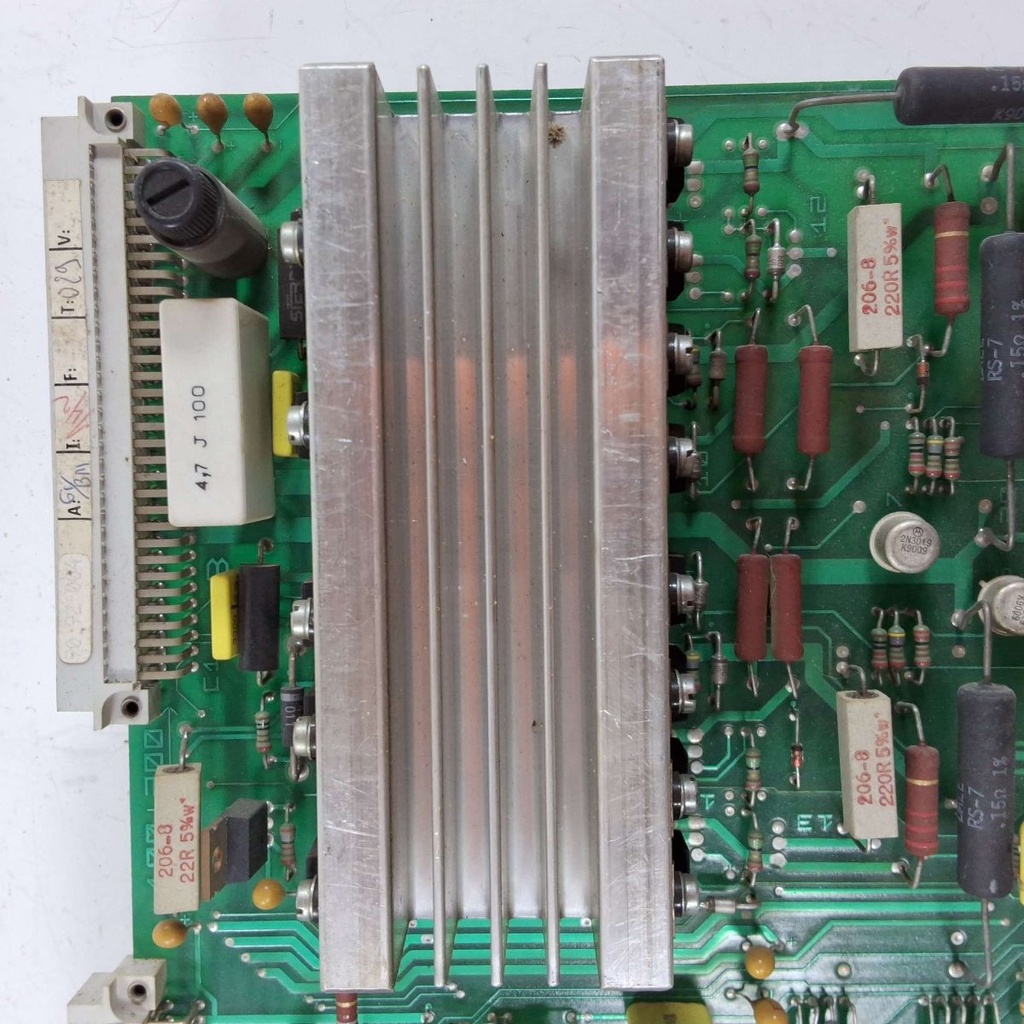

8526050 PCB APM U-V CE/CF100 (6AMP)MTR AMP CHARMILLES - USED-UNTESTED

CHARMILLES - overnight available, 30-day warranty return

**⚠️ WARRANTY / RETURNS:** Sold AS-IS, untested. 30-day DOA (dead on arrival) guarantee only — no returns for buyer's remorse or unspecified failures.

**APP URL:** https://task-deployer.emergent.host/api/products/f220c17a-75ef-4d44-b1ef-befbabf993aa/info?BC=123124735&PN=8526050&INT=8526050-USED-UNTESTED
**PART NUMBER:** 8526050
**INTERNAL P/N:** 8526050-USED-UNTESTED
**CONDITION:** USED-UNTESTED

**DESCRIPTION:**
PCB APM U-V CE/CF100 (6AMP)MTR AMPMain OEM Number: 208525440
SPL Part Number: 208525440
SPL Compatible Machines: CT | FI100
Machine Models: CT | FI100
SPL Description: PCB APM U-V CE/CF100 (6AMP)MTR AMPAI DESCRIPTION
The Charmilles APM U.V. circuit board, part number 8526050, is an essential component designed specifically for U and V axis control in EDM machines, particularly within the RoboFil series. This PCB features typical voltage rails of ±15 V, supporting precise electrical control in EDM applications. It integrates seamlessly into existing equipment, allowing for smooth operation and accurate movement across specified axes. The board is compact with nominal dimensions of 100 x 50 x 2 mm, and communicates using typical proprietary protocols to ensure compatibility with Charmilles equipment. The 8526050 model is known to support key EDM functions and ensure reliable machine performance.Key Features:
• ±15 V input voltage
• Supports U and V axis
• Proprietary communication protocol
• Nominal dimensions 100 x 50 x 2 mm
• Designed for Charmilles RoboFil seriesTypically used in: Charmilles RoboFil EDM machines.

**EBAY NAME:** 208526050 PCB MGV APM U-V # FANUC (FI2000) 20
**MACHINE MODEL:** CT | FI100
**COMPATIBLE MACHINES:** CT, FI100

**NOTES:**
Works great, pulled running machine before decommissioned

**CATEGORY:** All / ELECTRONICS / CHARMILLES
