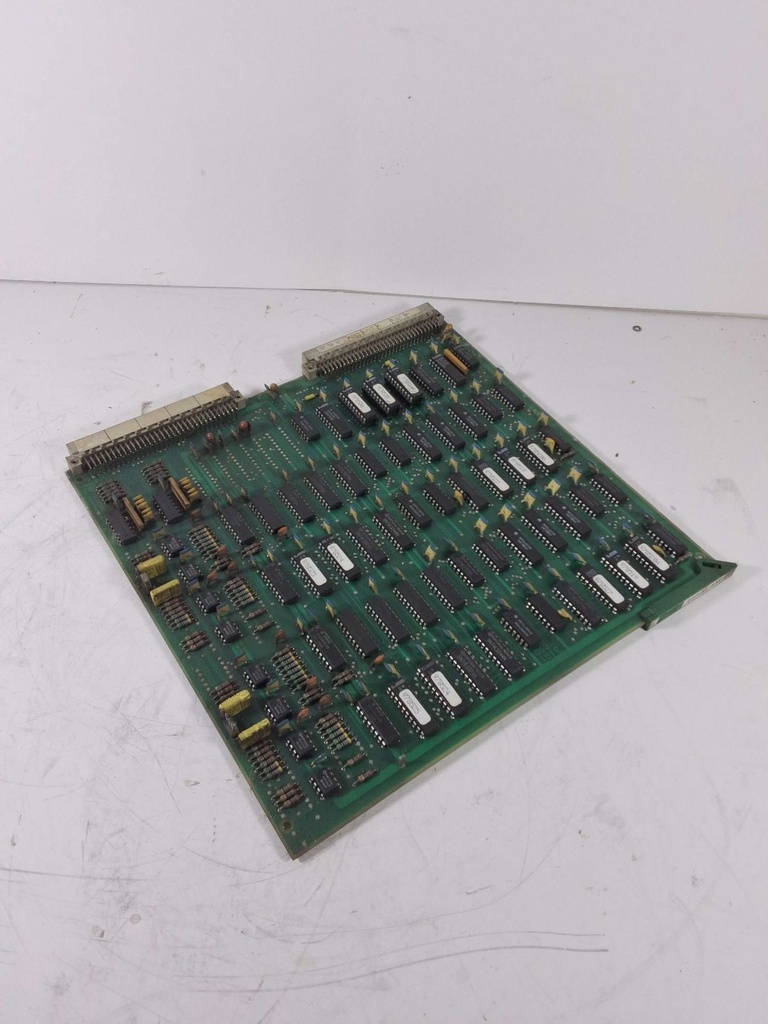

852485 PCB AXE E - F TCL669 200852485 EL416

**⚠️ WARRANTY / RETURNS:** Sold AS-IS, untested. 30-day DOA (dead on arrival) guarantee only — no returns for buyer's remorse or unspecified failures.

**APP URL:** https://task-deployer.emergent.host/api/products/79d4b621-d545-4249-a304-85aae8957a4f/info?BC=123123576&PN=852485&INT=852485-USED-UNTESTED
**PART NUMBER:** 852485
**INTERNAL P/N:** 852485-USED-UNTESTED
**CONDITION:** USED-UNTESTED

**DESCRIPTION:**
852485 Circuit BoardCOMPATIBLE PART NUMBERS: 852485COMPATIBLE MACHINES: C MACHINE X00━━━ EDM BOARD COMPATIBILITY (TCL669) ━━━
Board: AXE E-F
Board #: 200852485 (Rev: A)
COMPATIBLE MACHINES: C MACHINE X00
Jumpers: Jumper_configuration\axe_e-f_200852485.htm

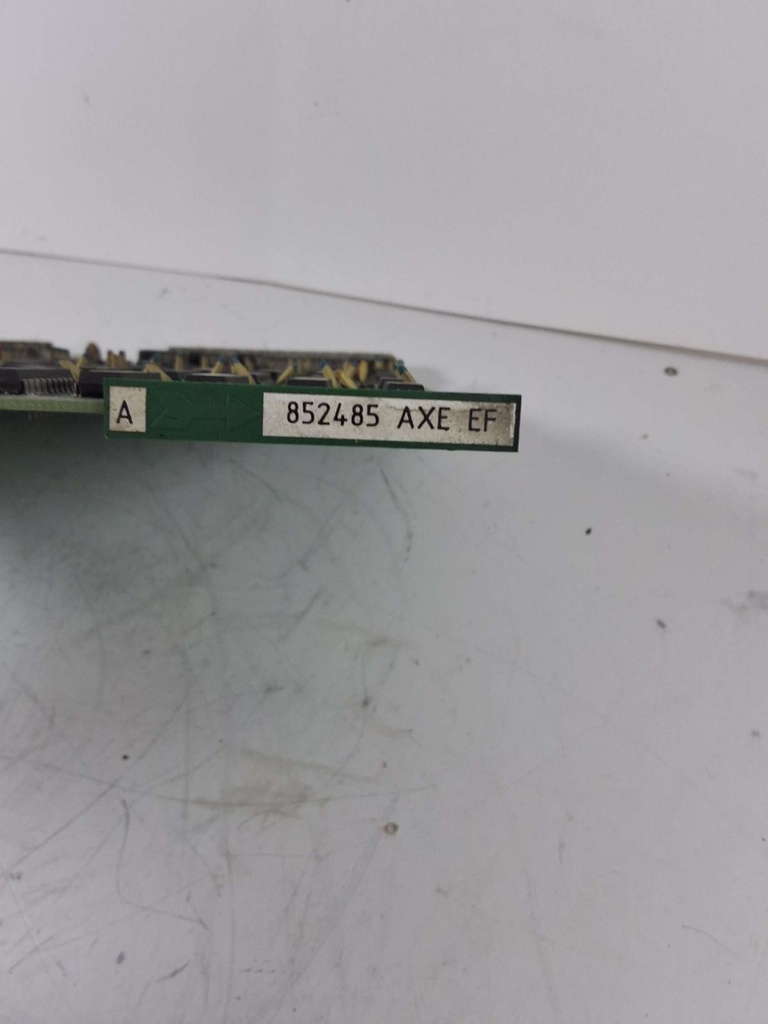

Notes: EL416: Added a jumper for configure A axis (25 mV)LABEL TEXT (scanned photo)
A
852485 AXE EFMain OEM Number: 200852485
SPL Part Number: 200852485
TCL669 Board Name: AXE E-F
TCL669 Index: A
TCL669 Compatibility Notes: C MACHINE X00
TCL669 Jumpers: Jumper_configuration\axe_e-f_200852485.htm
TCL669 Remarques: EL416: Added a jumper for configure A axis (25 mV)
SPL Compatible Machines: CT | FI100 | FI200 | FI2000 | FI400 | FI4000 | FI600 | FI6000
Machine Models: CT | FI100 | FI200 | FI2000 | FI400 | FI4000 | FI600 | FI6000
SPL Description: PCB AXE E - F

**EBAY NAME:** 852485 Circuit Board

**NOTES:**
Works great, pulled running machine before decommissioned

**EDM BOARD COMPATIBILITY (TCL669):**
Board: AXE E-F
Board #: 200852485 Rev: A
Compatible Machines: C MACHINE X00
Notes: EL416: Added a jumper for configure A axis (25 mV)

**CATEGORY:** All / ELECTRONICS / CHARMILLES
