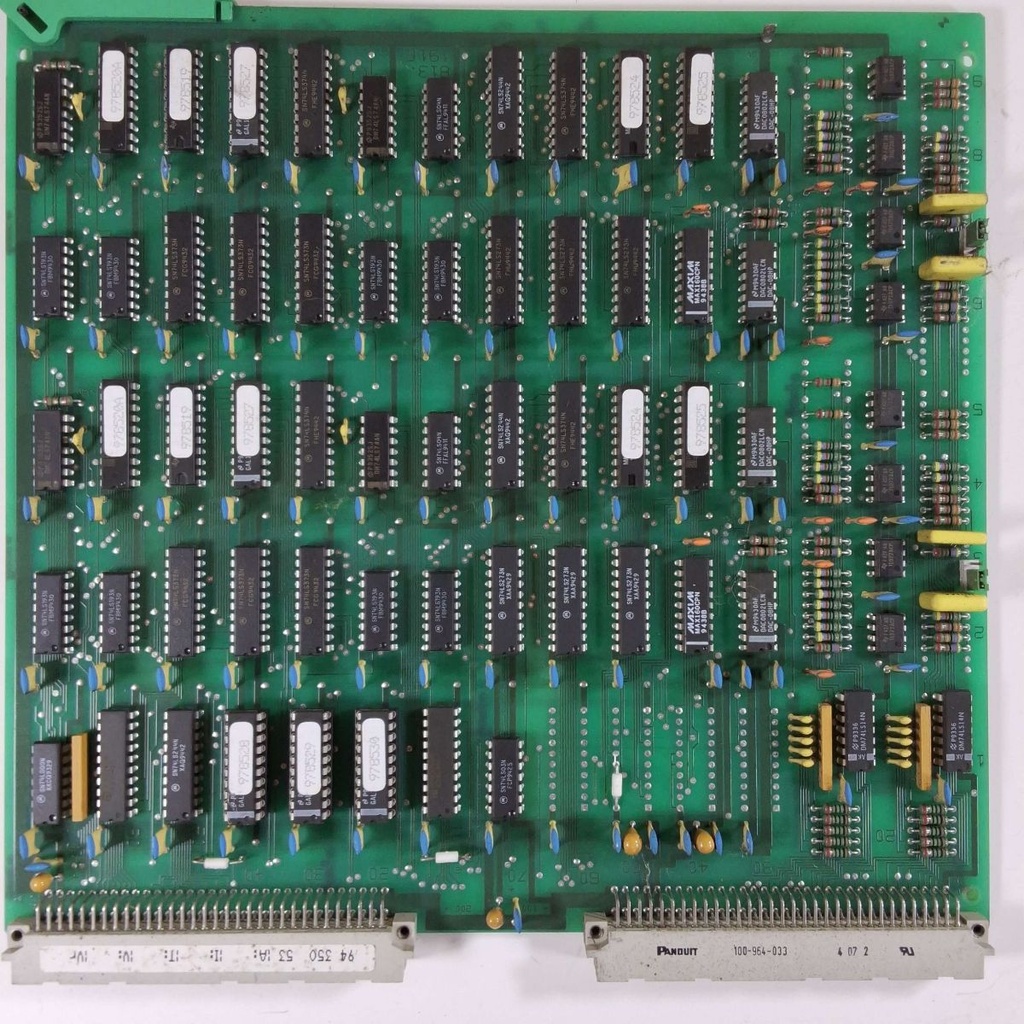

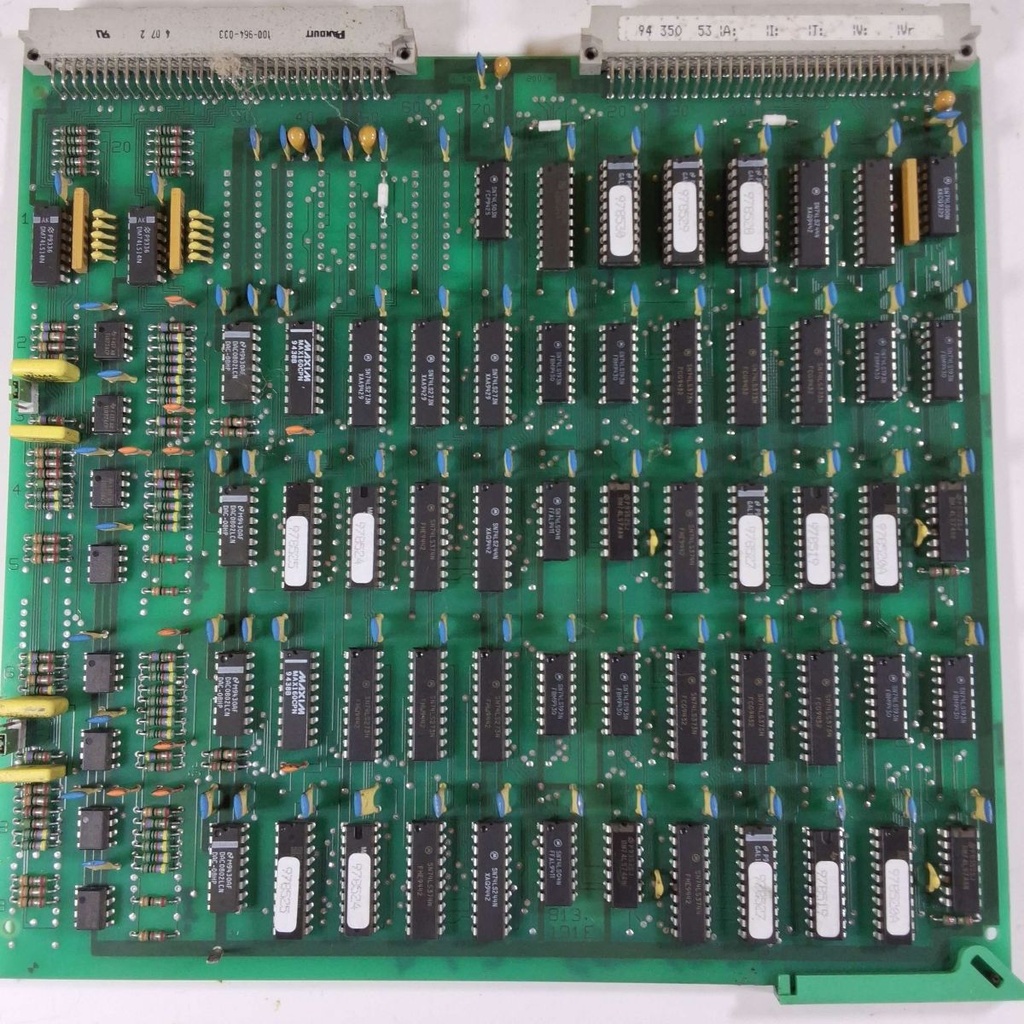

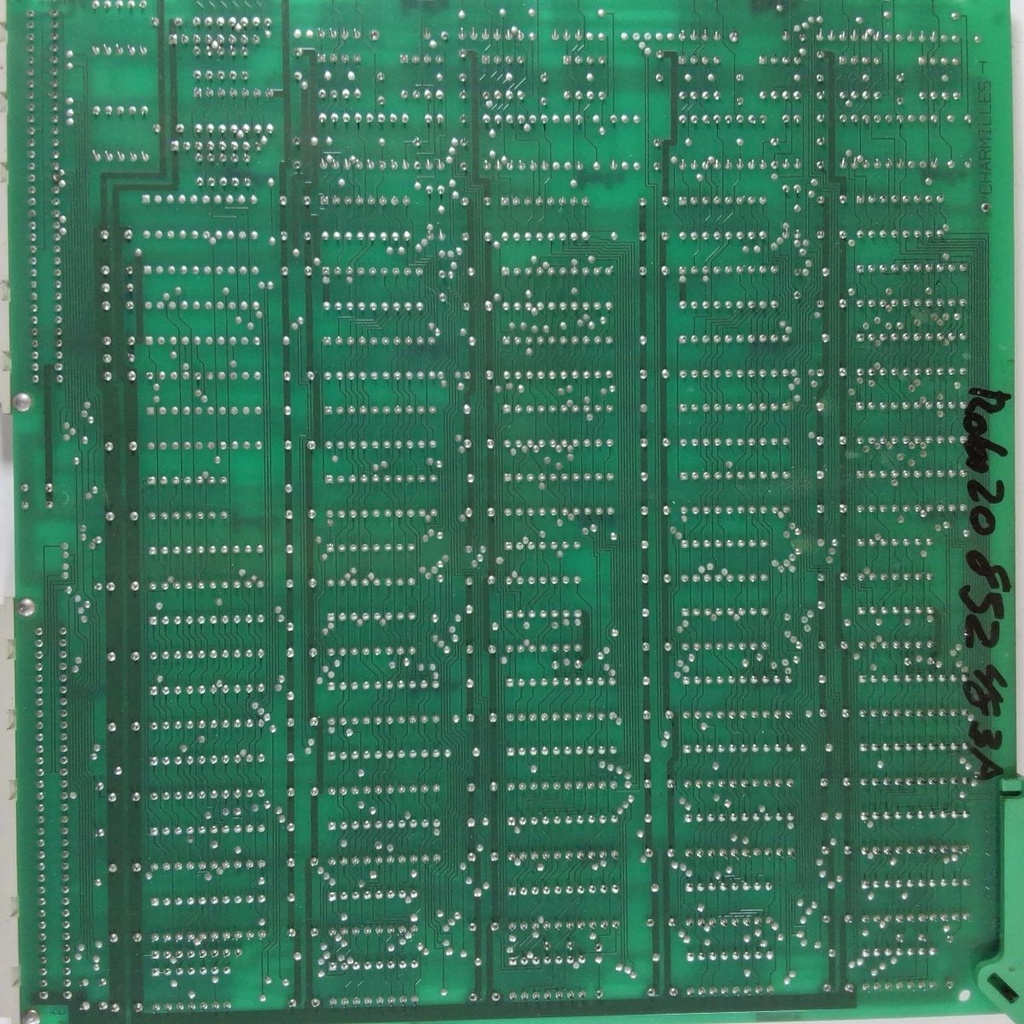

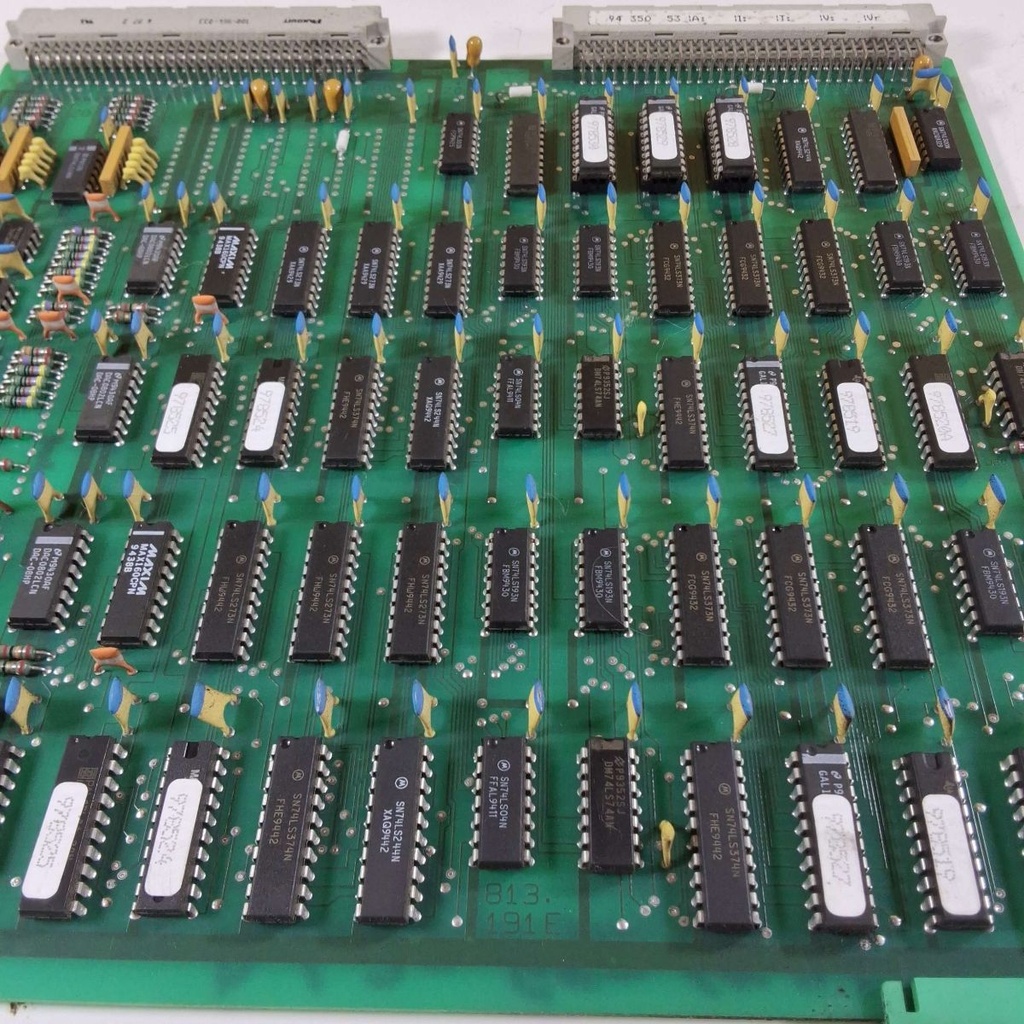

852483 PCB AXE Z - C CHARMILLES - USED-UNTESTED

CHARMILLES - overnight available, 30-day warranty return

**⚠️ WARRANTY / RETURNS:** Sold AS-IS, untested. 30-day DOA (dead on arrival) guarantee only — no returns for buyer's remorse or unspecified failures.

**APP URL:** https://task-deployer.emergent.host/api/products/5d1dfdac-712c-4768-8273-1c7f9dd9db4e/info?BC=123124525&PN=852483&INT=852483-USED-UNTESTED
**PART NUMBER:** 852483
**INTERNAL P/N:** 852483-USED-UNTESTED
**CONDITION:** USED-UNTESTED

**DESCRIPTION:**
852483 PCB AXE Z - CPCB AXE Z - CMain OEM Number: 100852483
SPL Part Number: 100852483
TCL669 Board Name: AXE Z-C
TCL669 Index: A
TCL669 Compatibility Notes: C MACHINE X00
TCL669 Jumpers: Jumper_configuration\axe_z-c-b_100852483.htm
TCL669 Remarques: EL416: Added a jumper for configure A axis (25 mV)
SPL Compatible Machines: CT | FI200 | FI2000 | FI400 | FI4000 | FO100 | FO20 | FO200 | FO20A | FO22 | FO400
Machine Models: CT | FI200 | FI2000 | FI400 | FI4000 | FO100 | FO20 | FO200 | FO20A | FO22 | FO400
SPL Description: PCB AXE Z - CCOMPATIBLE MACHINES: CT, FI200, FI2000, FI400, FI4000, FO100, FO20, FO200, FO20A, FO22, FO400LABEL TEXT (scanned photo)
Manual entry: 852483

**EBAY NAME:** 852483 PCB AXE Z - C - TESTED WORKING
**MACHINE MODEL:** CT | FI200 | FI2000 | FI400 | FI4000 | FO100 | FO20 | FO200 | FO20A | FO22 | FO400
**COMPATIBLE MACHINES:** CT, FI200, FI2000, FI400, FI4000, FO100, FO20, FO200, FO20A, FO22, FO400

**NOTES:**
Works great, pulled running machine before decommissioned

**EDM BOARD COMPATIBILITY (TCL669):**
Board: AXE Z-C

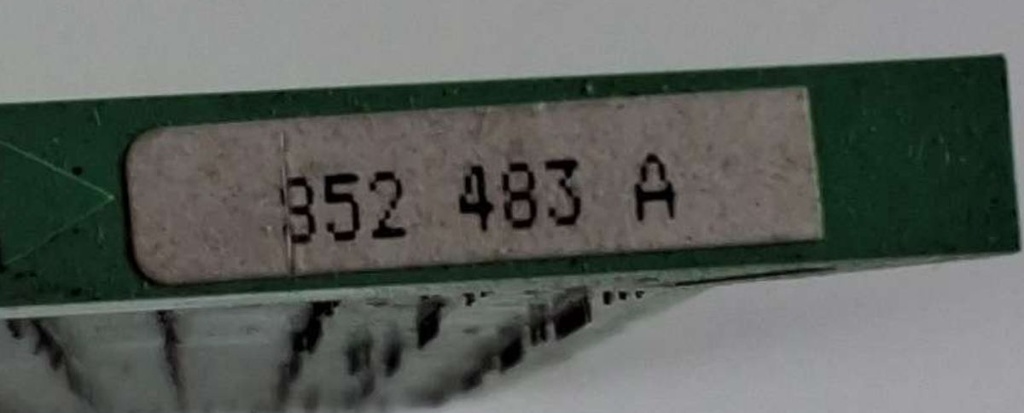

Board #: 100852483 Rev: A
Compatible Machines: C MACHINE X00
Notes: EL416: Added a jumper for configure A axis (25 mV)

**CATEGORY:** All / ELECTRONICS / CHARMILLES
