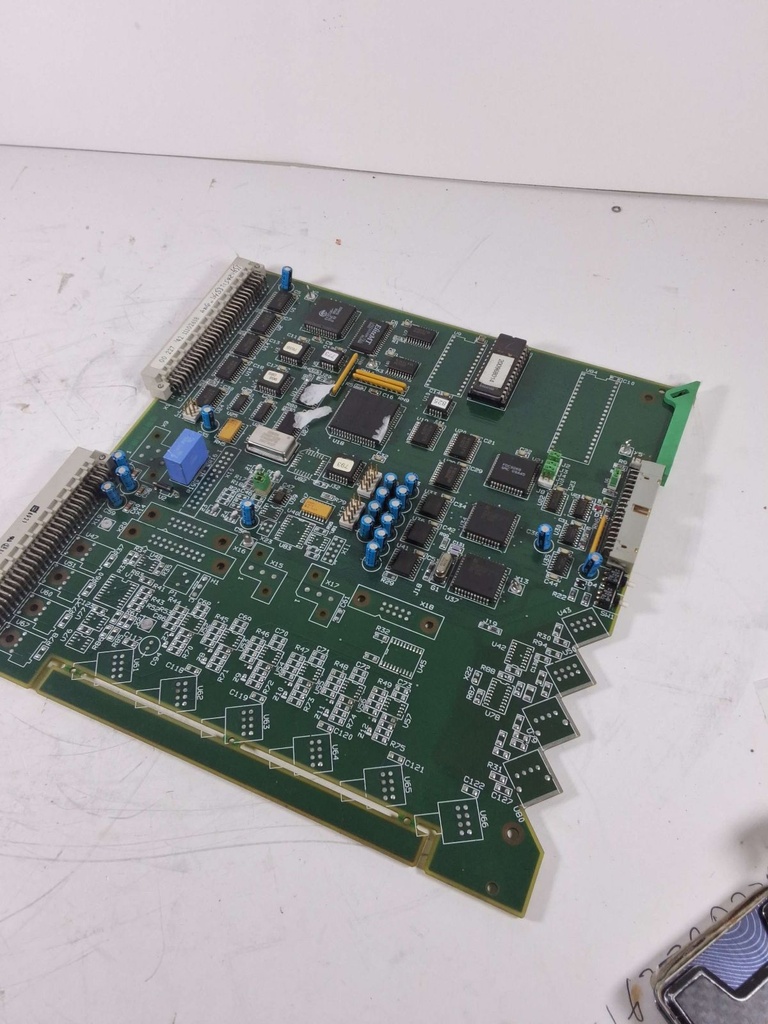

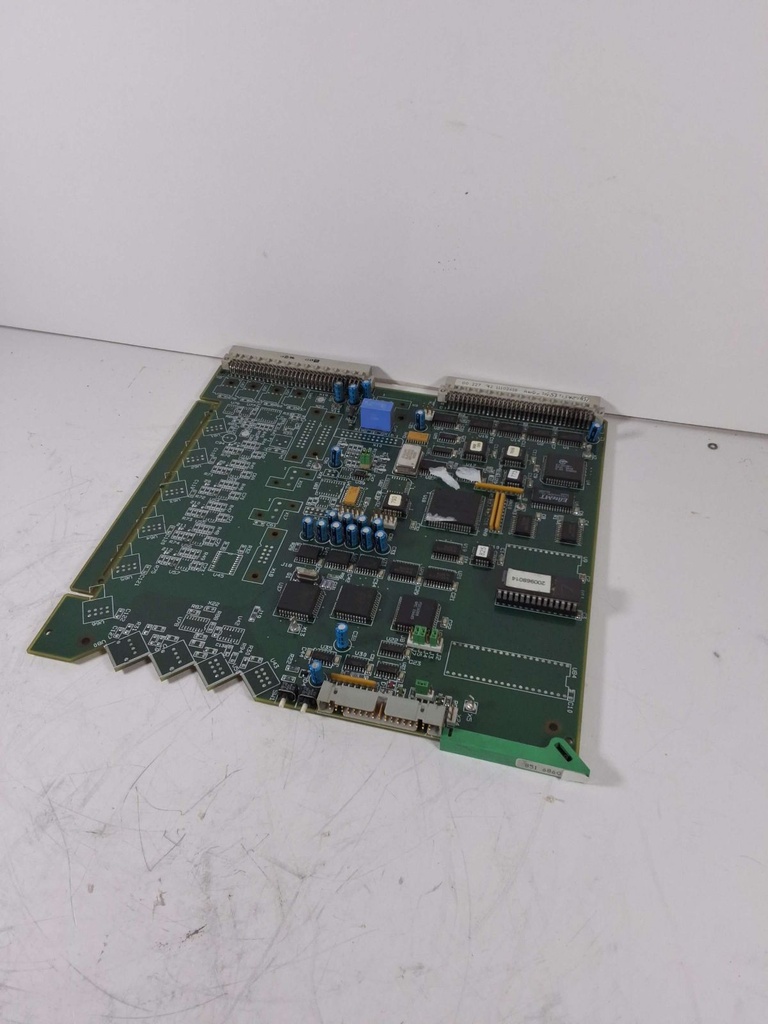

8516860 PCB Board TCL669 208516860 EL2189 200986014

**⚠️ WARRANTY / RETURNS:** Sold AS-IS, untested. 30-day DOA (dead on arrival) guarantee only — no returns for buyer's remorse or unspecified failures.

**APP URL:** https://task-deployer.emergent.host/api/products/934b8c38-3239-42b2-a3f5-6f4573698786/info?BC=123123547&PN=8516860&INT=8516860-USED-UNTESTED
**PART NUMBER:** 8516860
**INTERNAL P/N:** 8516860-USED-UNTESTED
**CONDITION:** USED-UNTESTED

**DESCRIPTION:**
8516860 PCB BoardCOMPATIBLE PART NUMBERS: 8516860COMPATIBLE MACHINES: FI X020.1 - FIX00 Brass - FO_20 - FO 22 - FO 4X - FO_3X - FO 35/QCRi - FO_54/55/QCRi━━━ EDM BOARD COMPATIBILITY (TCL669) ━━━
Board: MICRODISK-U
Board #: 208516860 (Rev: G)
PRECEDING VERSION: 108 515 450/208 525 460/108 526 330
COMPATIBLE MACHINES: FI X020.1 - FIX00 Brass - FO_20 - FO 22 - FO 4X - FO_3X - FO 35/QCRi - FO_54/55/QCRi
Jumpers: Jumper_configuration\microdisk-U_208516860.htm

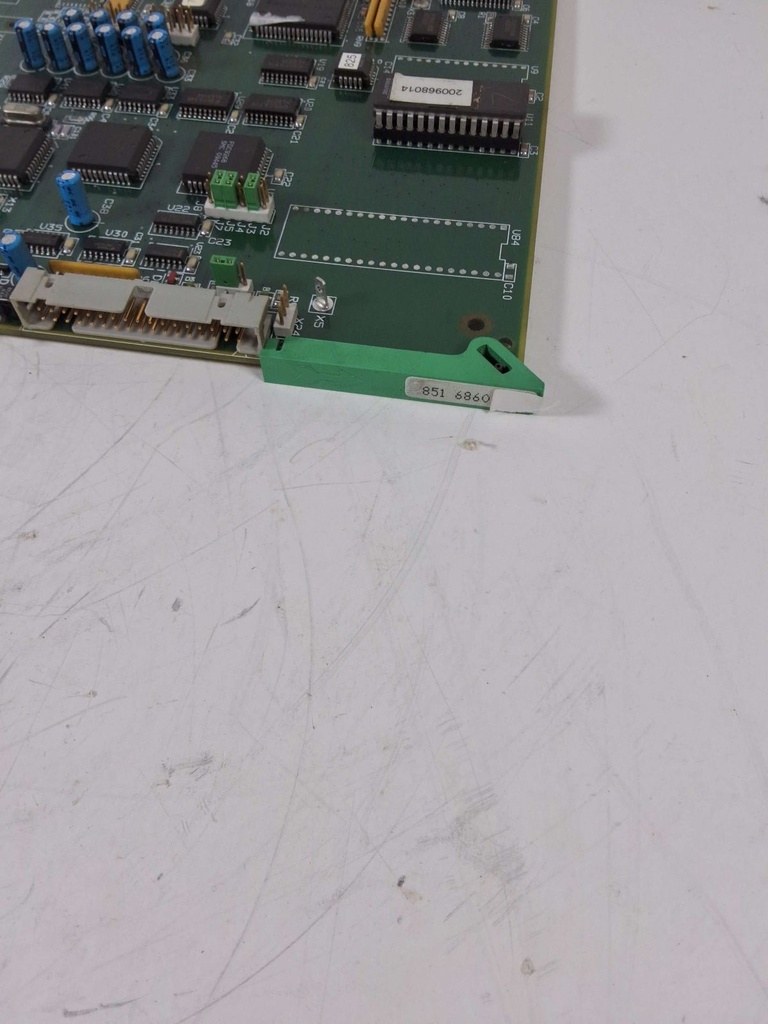

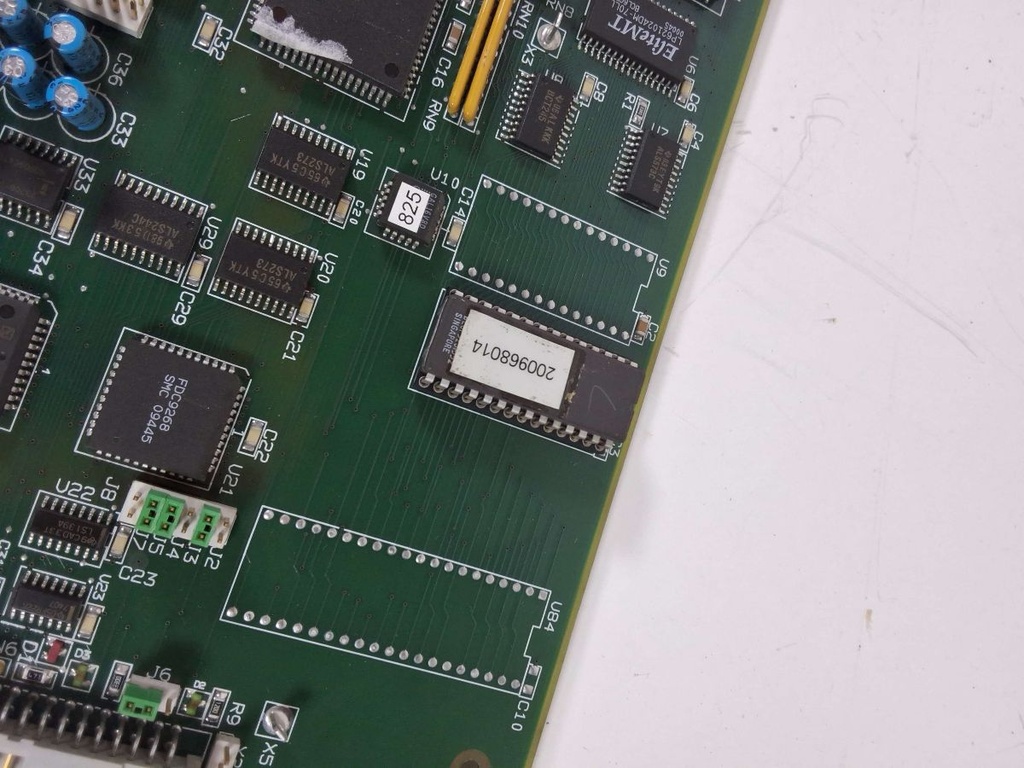

Notes: EL2189 : Replacement of the U16 PAL by another one.LABEL TEXT (scanned photo)
200986014
851 6860
U21
U22
U23
U24
U30
P1
P4
P6
P20
J2
SK

**NOTES:**
Works great, pulled running machine before decommissioned

**EDM BOARD COMPATIBILITY (TCL669):**
Board: MICRODISK-U
Board #: 208516860 Rev: G
Preceding: 108 515 450/208 525 460/108 526 330
Compatible Machines: FI X020.1 - FIX00 Brass - FO_20 - FO 22 - FO 4X - FO_3X - FO 35/QCRi - FO_54/55/QCRi
Notes: EL2189 : Replacement of the U16 PAL by another one.

**CATEGORY:** All / ELECTRONICS / CHARMILLES
