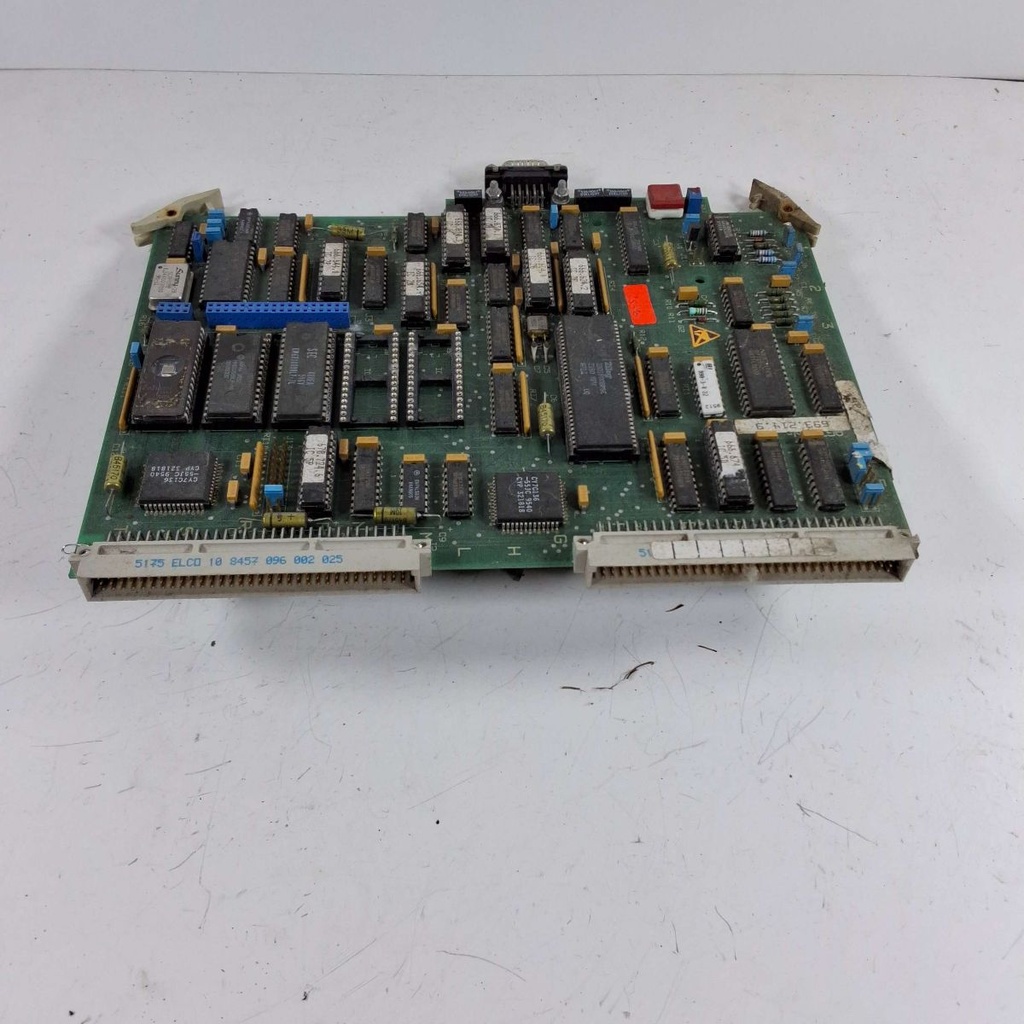

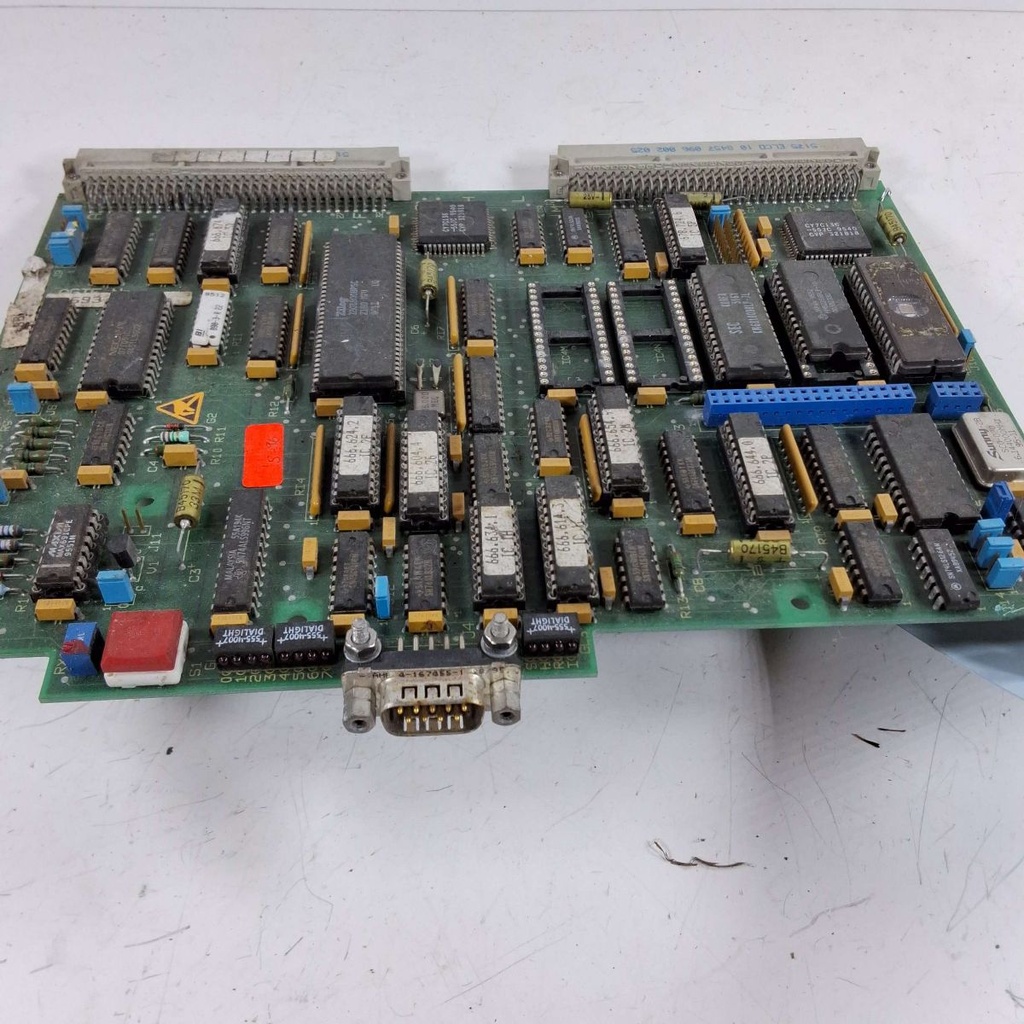

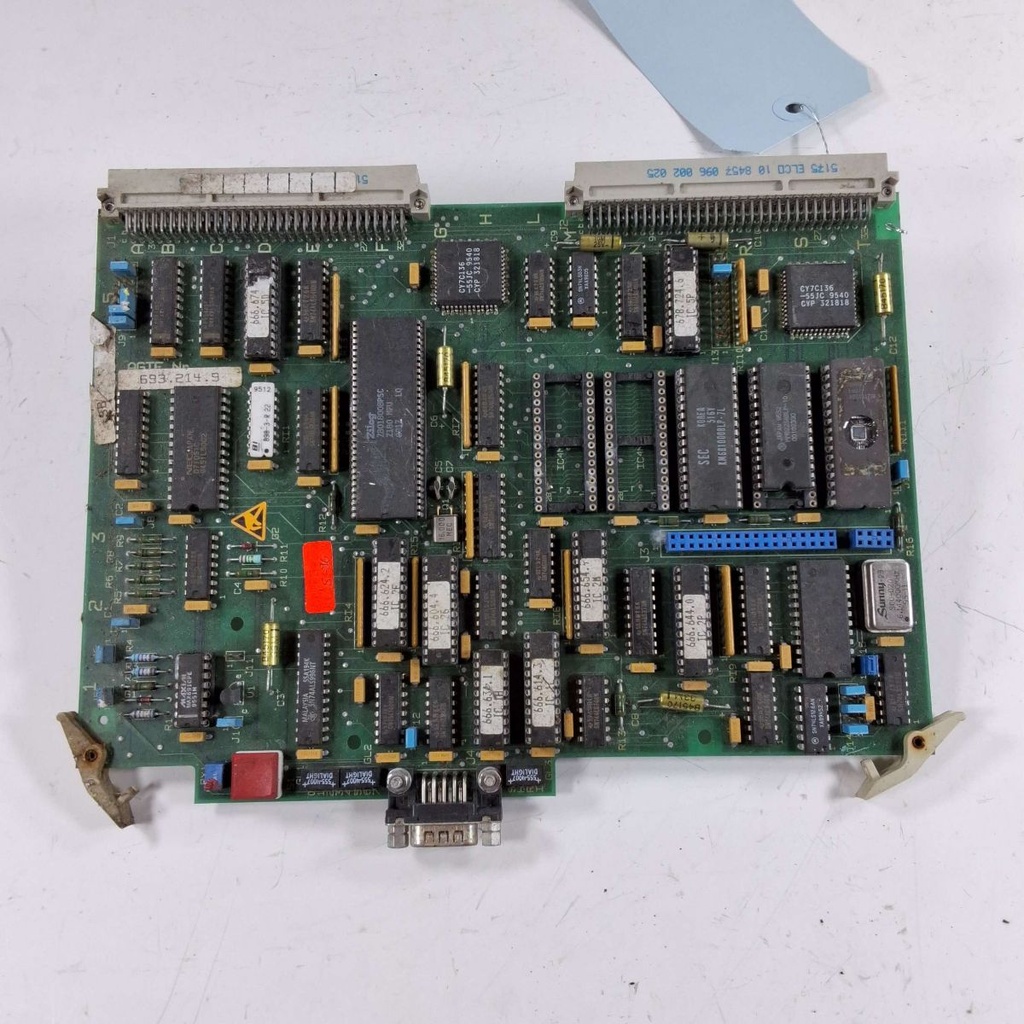

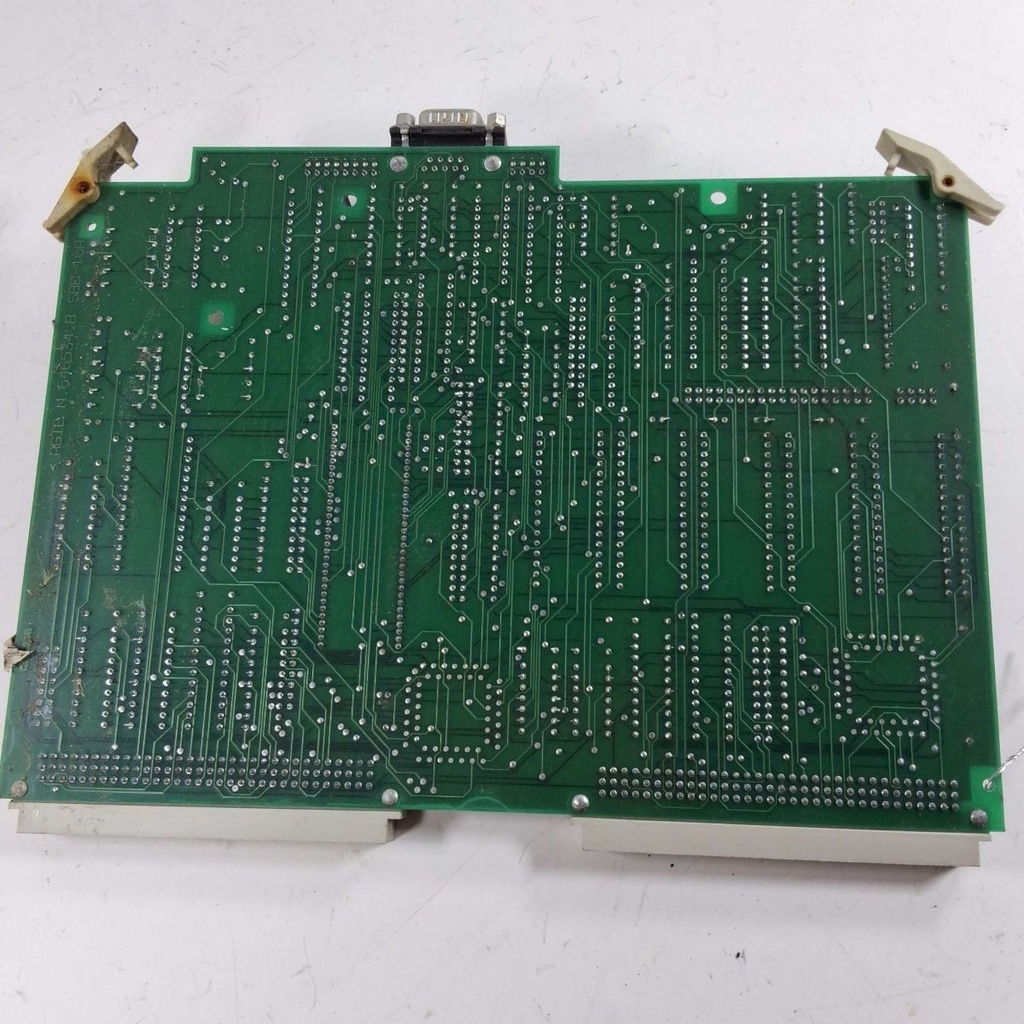

693.214.9 AGIE BOARD Electronic control board/PCB module for AGIE EDM. Part number 693.214.9 - USED-UNTESTED
AGIE - overnight available, 30-day warranty return
**⚠️ WARRANTY / RETURNS:** Sold AS-IS, untested. 30-day DOA (dead on arrival) guarantee only — no returns for buyer's remorse or unspecified failures.
**APP URL:** https://task-deployer.emergent.host/api/products/543b01d4-1048-45ec-8724-721427a61c6d/info?BC=123124760&PN=693.214.9+AGIE+BOARD&INT=6932149AGIEBOARD-USED-UNTESTED
**PART NUMBER:** 693.214.9 AGIE BOARD
**INTERNAL P/N:** 6932149AGIEBOARD-USED-UNTESTED
**CONDITION:** USED-UNTESTED
**DESCRIPTION:**
693.214.9 AGIE BOARD Electronic control board/PCB module for AGIE EDM (Electrical Discharge Machining) equipment. Part number 693.214.9 is an AGIE-specific component identifier used in their machine control systems.COMPATIBLE MACHINES: AGIE Classic Serie74LS24s EDM machines,AGIE wire-cut EDM systems,AGIE sinker/die-sink EDM machines,Potentially compatible with GF Machining Solutions equipment (AGIE acquired by Georg Fischer)CATEGORY: EDM Machine Control ElectronicsAI DESCRIPTION

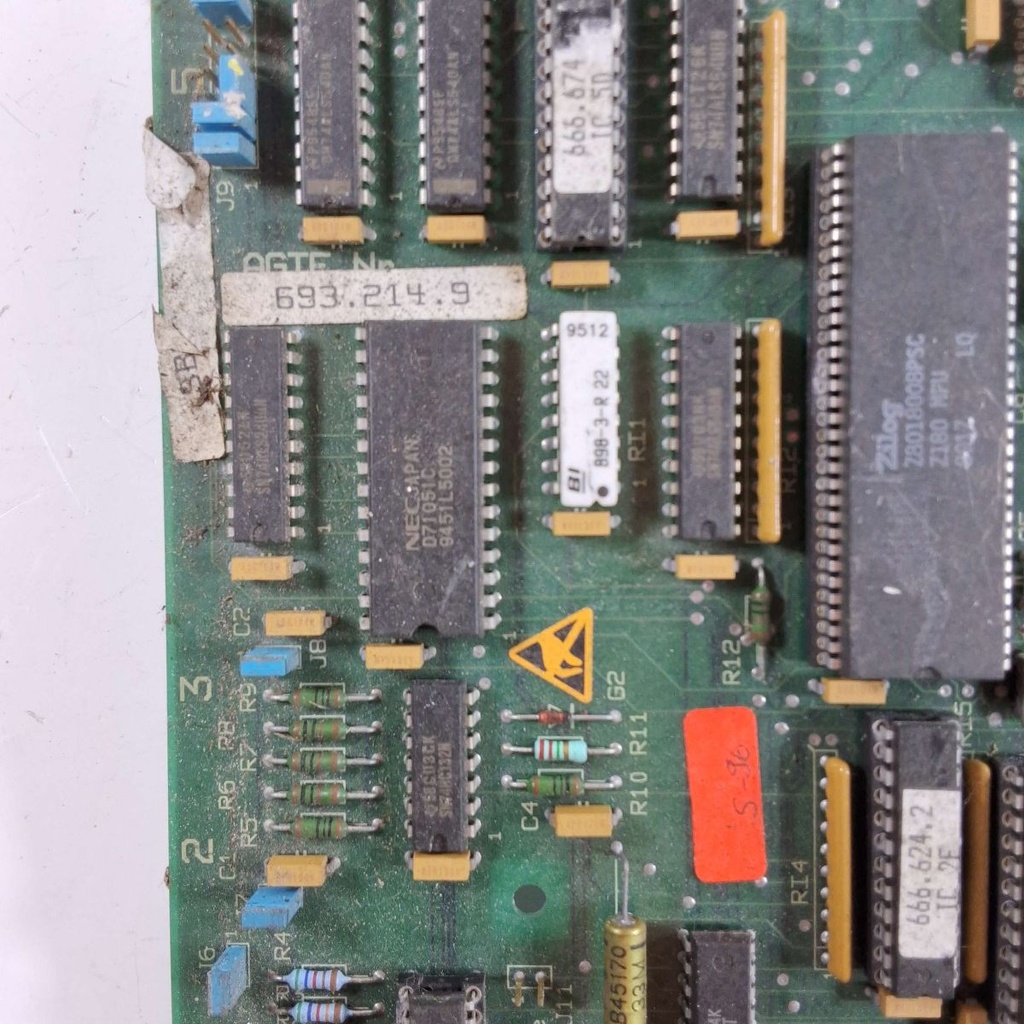

The 693.214.9 Electronic Control Board is engineered for AGIE EDM systems, specifically within wire-cut and sinker/die-sink machine setups. This single-board computer integrates microprocessors such as the NEC N9515002 and Zilog Z0800008PSC for precise control of EDM operations. Its primary role is to manage and process the electro-discharge activities by coordinating the electrical pulse timing and intensity critical for material removal processes. Typical input voltages include ±15 V and +5 V, essential for board-level operations. This PCB module, part of the AGIE EDM series, also retains compatibility with equipment under the GF Machining Solutions brand, which follows AGIE's acquisition by Georg Fischer.Key Features:
• ±15 V, +5 V input
• N9515002 NEC processor
• Zilog Z0800008PSC microcontroller
• 160 mm x 100 mm dimensions
• Integral to EDM pulse controlTypically used in: AGIE Classic Series EDM, AGIE wire-cut, AGIE sinker/die-sink systems, GF Machining Solutions.
**EBAY NAME:** 693.214.9 AGIE BOARD 693.214.9 AGIE Control Board - TESTED WORKING
**COMPATIBLE MACHINES:** AGIE Classic Series EDM machines, AGIE wire-cut EDM systems, AGIE sinker/die-sink EDM machines, Potentially compatible with GF Machining Solutions equipment (AGIE acquired by Georg Fischer)
**NOTES:**
Works great, pulled running machine before decommissioned
**CATEGORY:** All / ELECTRONICS / AGIE
