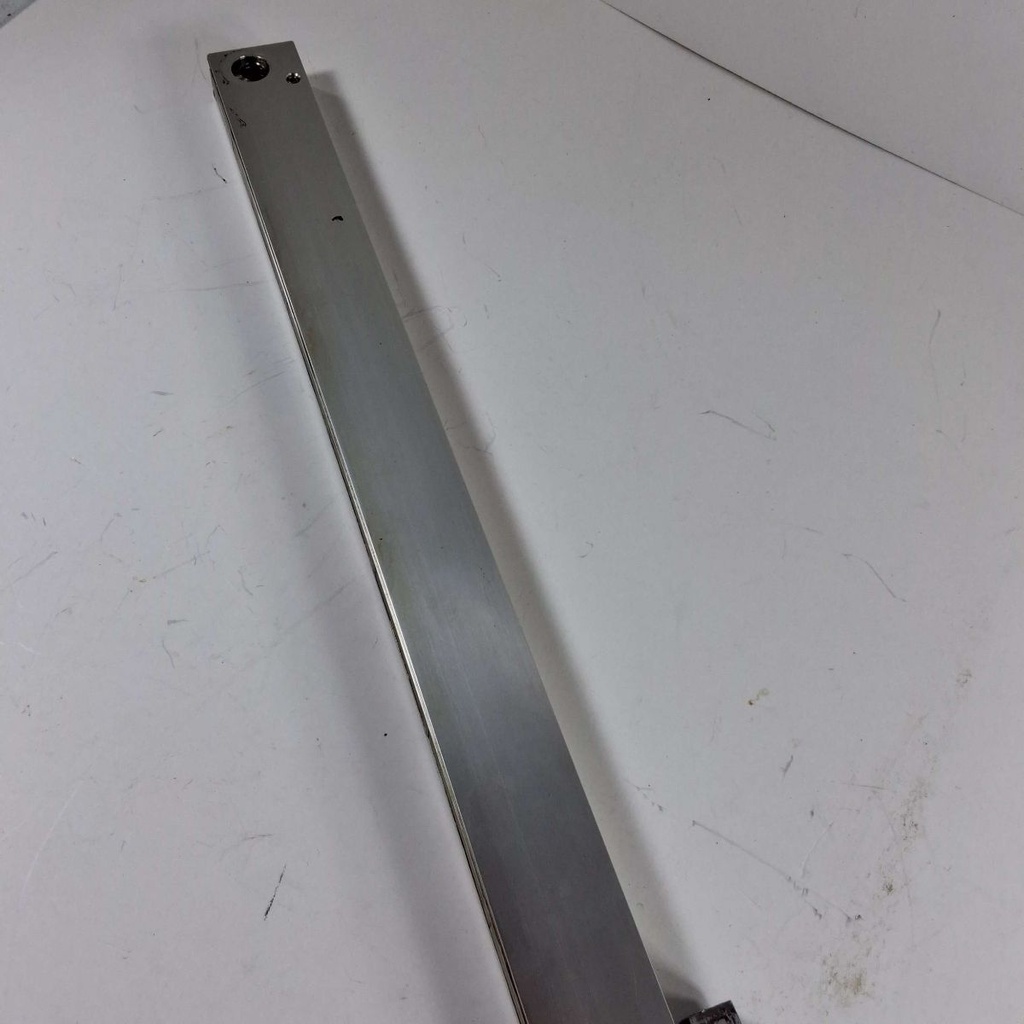

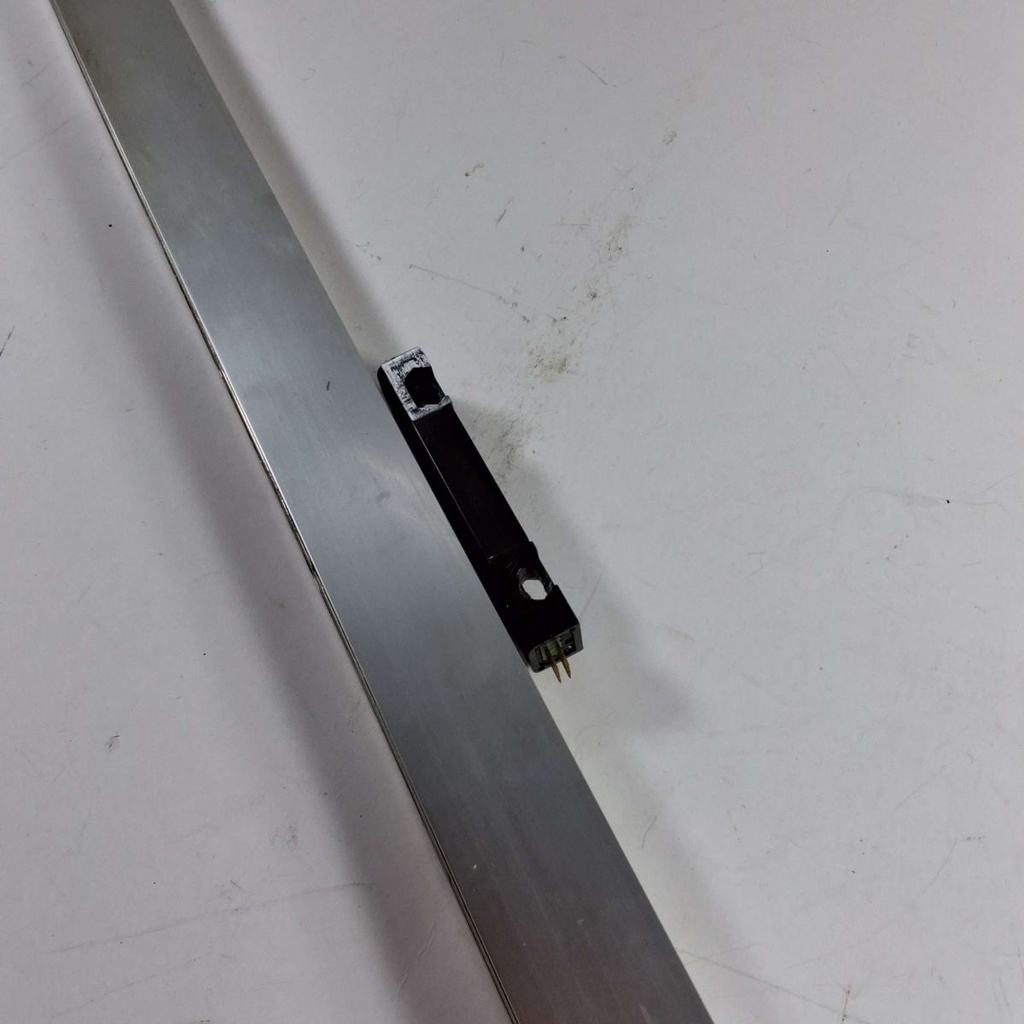

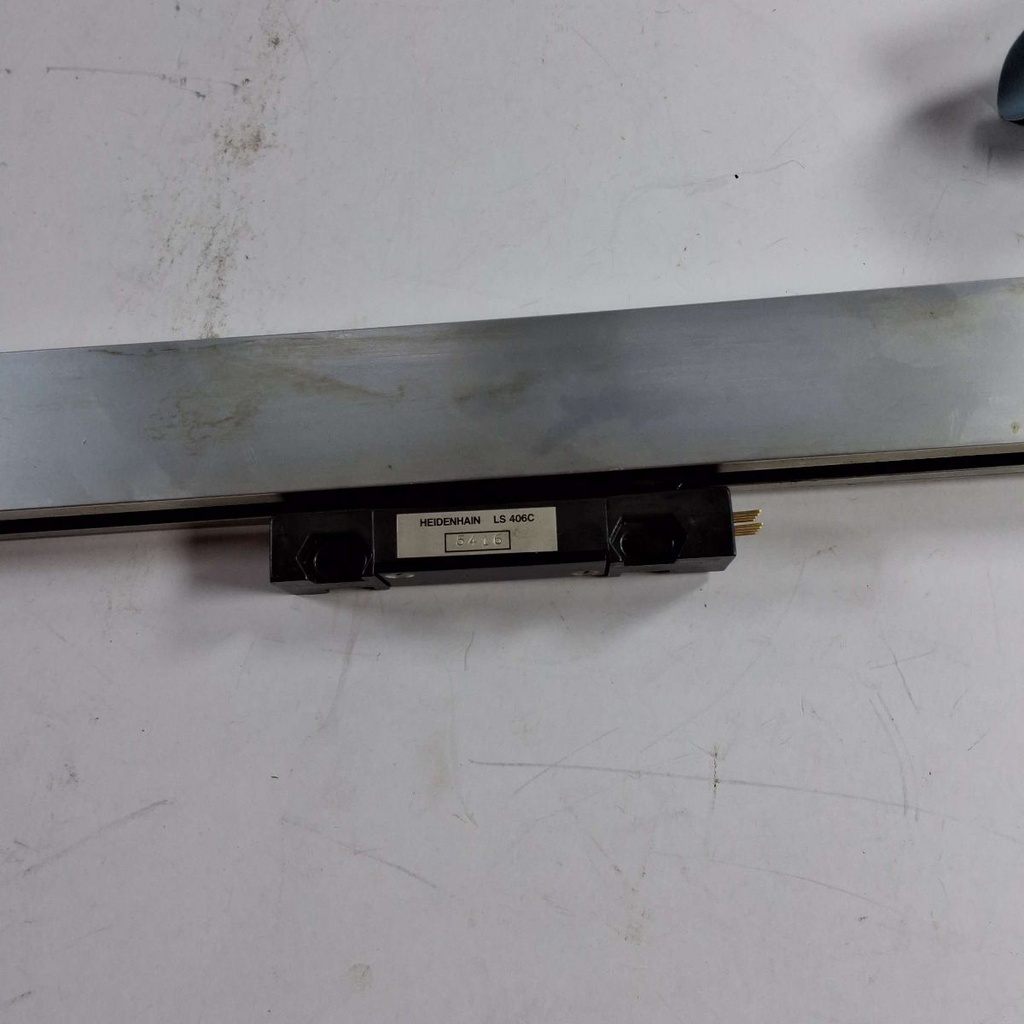

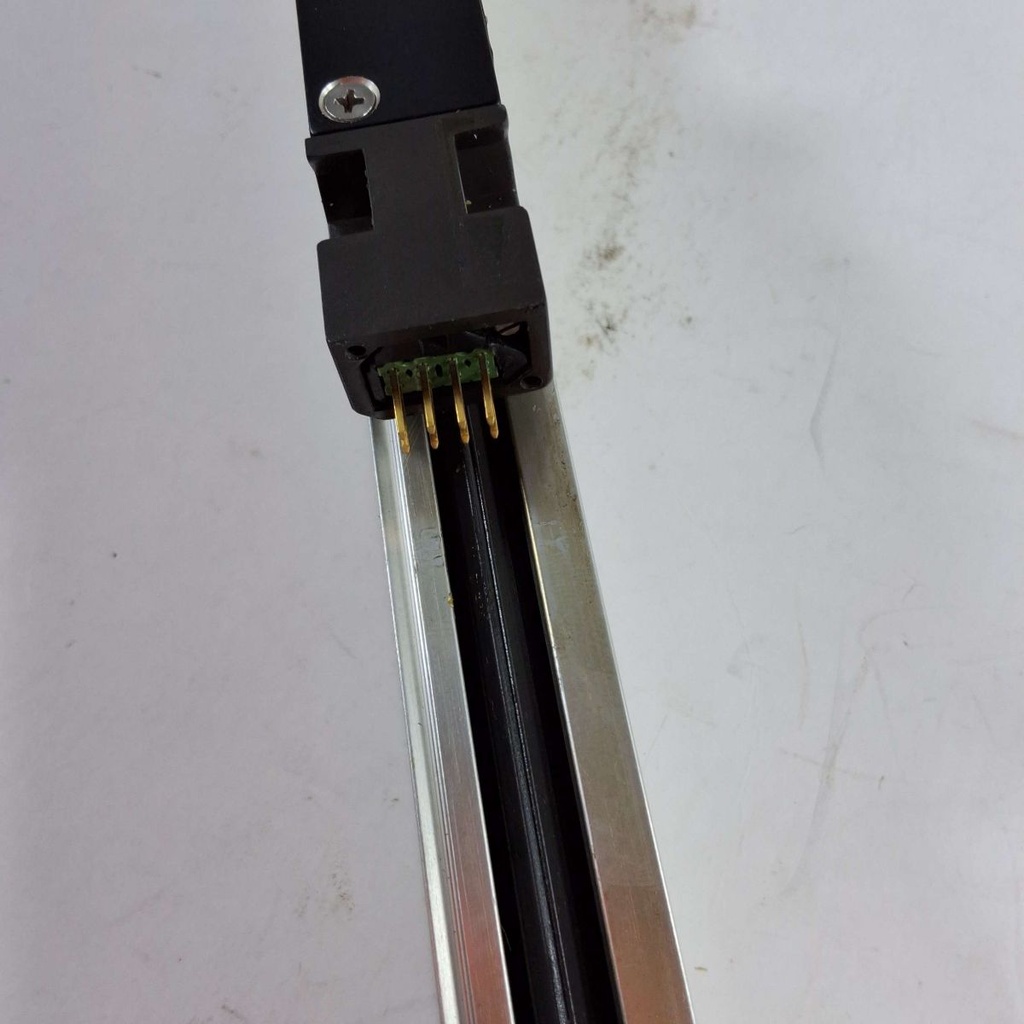

31000449 HEIDENHAIN SCALE LS406C ML220 Y/U FI190 CHARMILLES - USED-TESTED

CHARMILLES - overnight available, 30-day warranty return

**⚠️ WARRANTY / RETURNS:** Fully tested and confirmed working. 30-day return guarantee if not as described.

**APP URL:** https://task-deployer.emergent.host/api/products/6c304c15-b52f-4e5f-a488-aa653c339d97/info?BC=123124304&PN=31000449&INT=31000449-USED-TESTED
**PART NUMBER:** 31000449
**INTERNAL P/N:** 31000449-USED-TESTED
**CONDITION:** USED-TESTED

**DESCRIPTION:**
HEIDENHAIN SCALE LS406C ML220 Y/U FI190Main OEM Number: 100448024
SPL Part Number: 100448024
Description: HEIDENHAIN SCALE LS406C ML220 Y/U FI190
SPL Description: HEIDENHAIN SCALE LS406C ML220 Y/U FI190ALL CROSSREF NUMBERS: 100448024
OEM Numbers: 100448024AI DESCRIPTION
The Heidenhain LS 406C is a high-precision linear encoder, ideally suited for applications requiring exact positioning accuracy. It provides a system accuracy of ±5 µm and uses TTL output signals, making it compatible with a range of digital readout systems and CNC controls. The encoder operates on a 5 V DC supply voltage, with a resolution of 0.1 µm, ensuring fine subdivision of measurements. Measuring length capacity is 420 mm, with profile dimensions that are typical for this class of encoder.Key Features:
• System accuracy of ±5 µm
• TTL output signal
• 5 V DC supply voltage
• Resolution of 0.1 µm
• Measuring length of 420 mmTypically used in: CNC milling machines requiring high positioning accuracy.Main OEM Number: 100448024
SPL Part Number: 100448024
Description: HEIDENHAIN SCALE LS406C ML220 Y/U FI190
SPL Description: HEIDENHAIN SCALE LS406C ML220 Y/U FI190
ALL CROSSREF NUMBERS: 100448024
OEM Numbers: 100448024

**EBAY NAME:** 31000449 Encoder Module

**NOTES:**
Works great, pulled running machine before decommissioned

**CATEGORY:** All / ELECTRONICS / CHARMILLES
